Sinotruk Howo Heavy duty 20 m3 water tank truck 6x4 for sale

  • 1 - 9 Sets
    US $45000.00
  • 10 - 19 Sets
    US $40000.00
  • >=20 Sets
    US $36000.00
Model Number:
OEM OEM
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HOWO
Product name:
Sinotruk Howo Heavy duty Water Tanks 6x4 Truck for sale
Type:
water tank truck
name:
Sprinkling Truck
Size:
20000 liter water tank truck
Material:
20CBM tank truck
Color:
RED WHITE BLUE YELLOW
Car Make:
sinotruck howo
OEM:
OEM Service
Application:
tank truck
Certificate:
ISO9001
Supply Ability
Supply Ability:
200 Set/Sets per Month Sinotruk Steyr truck fuel water sprinkler tank for sale gold
Packaging & Delivery
Packaging Details
Sinotruk Steyr 6X2 truck fuel water sprinkler tank 18000L to 26000l for sale GOLD
Port
QINGDAO TIANJIN SHANGHAI
Lead Time :
20 DAYS

 --_02

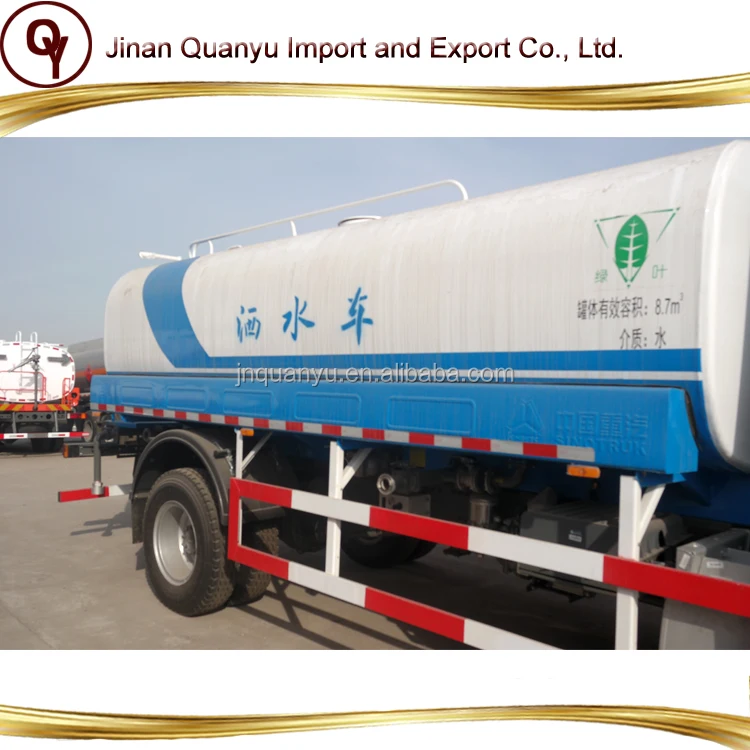

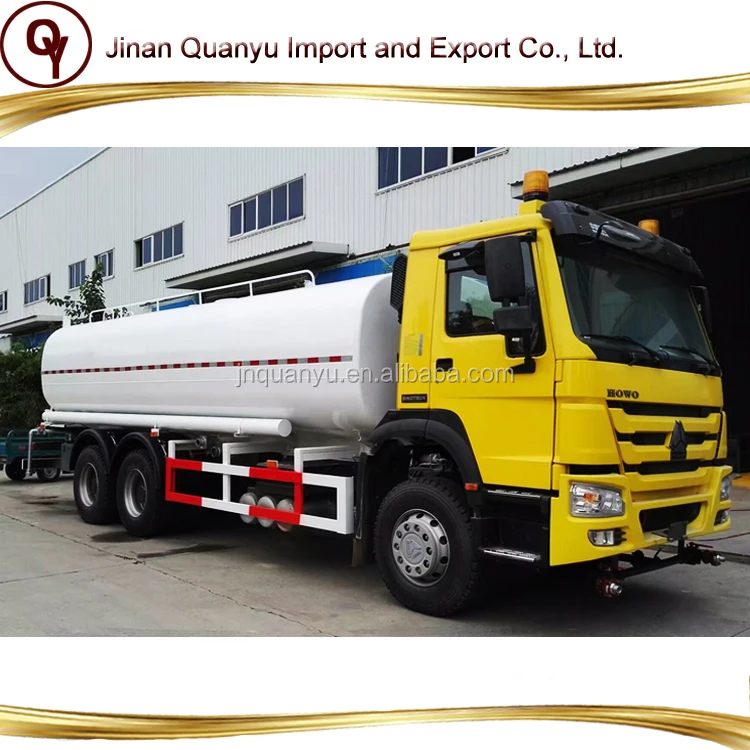

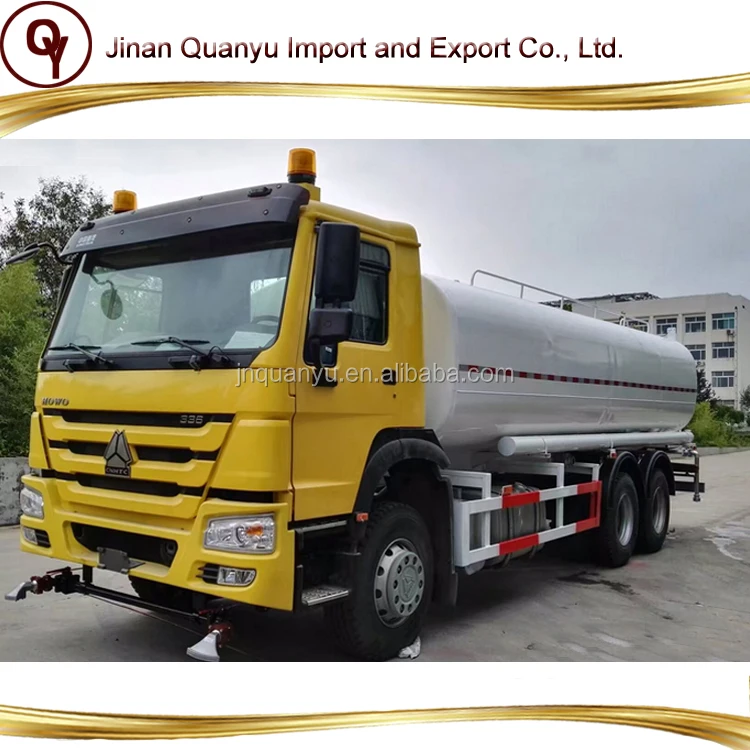

Sinotruk Howo Heavy duty Water Tanks 6x4 Truck for sale

Cubage

20m³

Pump:Water sprinkling truck dedicated pump,

65QSB-50/110,output 50cbm/h.pump lift 110m.

High-pressure water gun shoot,gun range 35m

Sprinkling scope:14-18 m

Weight in kgKerb weight (Kg)12790
 Gross vehicle weight (Kg)25000

Dimension(mm)



Dimensions(mm)Length(mm)11250
  Width(mm)2550
  Height(mm)3650
 Wheel base (mm)4600+1350
PerformanceMaximum driving speed (km/h)92
 Fuel consumption (1/100 km)38
CabModelSINOTRUK HW76 Lengthen cab
  single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner
EngineModelWD615.69(Euro 2)
 Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.
 Horsepower336
 Maximum output Kw/r/min247/2200
 Maximum torque N.m/r/min1350/1300-1600
 Bore x Stroke126x130mm
 Valve2
 Displacement9.726L
 Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
SteeringZF8198 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front AxleSINOTRUK HF7 Front Axle,new 7-ton front axles of equipped with drum brakes..
Rear Axles

SINOTRUK ST16 Double Reduction Drive Axle, Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio:4.42;strengthened design,

loading capacity and reliability have been increased greatly.

Brake System

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Wheels & TyresRims:10 hole-steel ;Tyres:12R22.5 tubeless tyre with 1 Spare tire..
Electrics

Operating voltage:24V,negative grounded

Starter:24V,7.5 Kw

Alternator:3-phase,28V,1500 W

Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light.



--_04








Company Information



Jinan Quanyu Import and Export Co., Ltd. is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce, and our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.

SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china’s first heavy duty truck.In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china’s largest heavy duty truck manufacturing base and made significant contributions to the development of china’s heavy duty truck industry and national economic growth.

We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.

We sincerely hope to cooperate with you to expand market in your country!
